Condition:New
Applicable Industries:Food & Beverage Shops
Showroom Location:None
Place of Origin:Guangdong, China
Brand Name:XMK
Application:Refrigeration Parts, condensing unit
Warranty:Unavailable
After Warranty Service:Online support
Local Service Location:None
Certification:ce
After-sales Service Provided:Video technical support, Online support
Model Number:XMK6203
Color:Green and blue

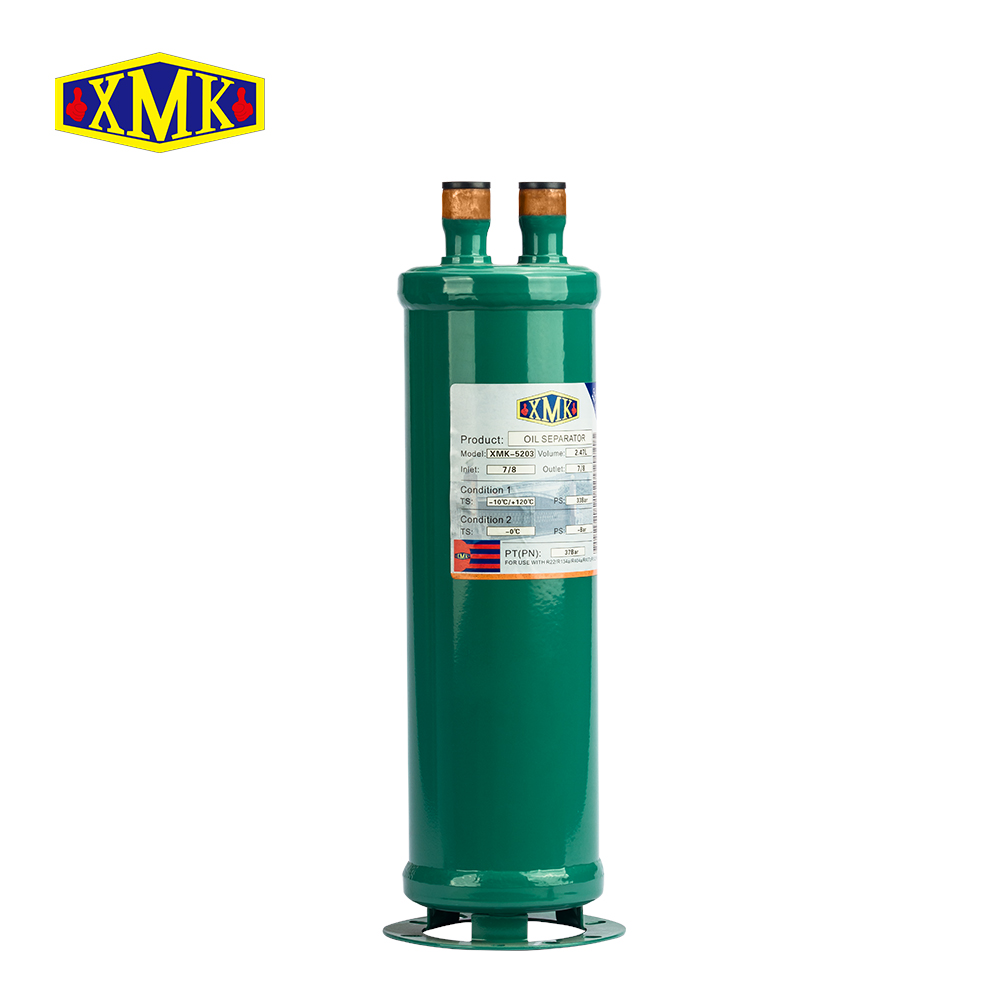

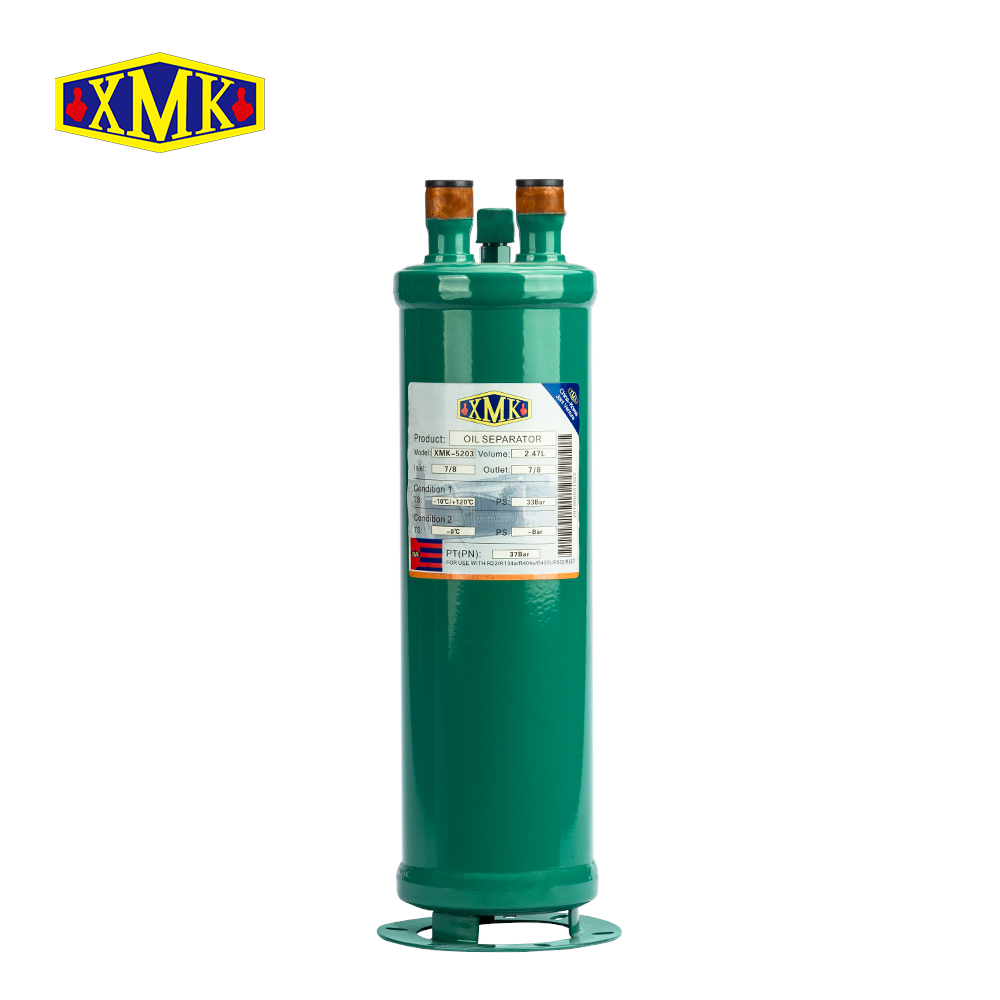

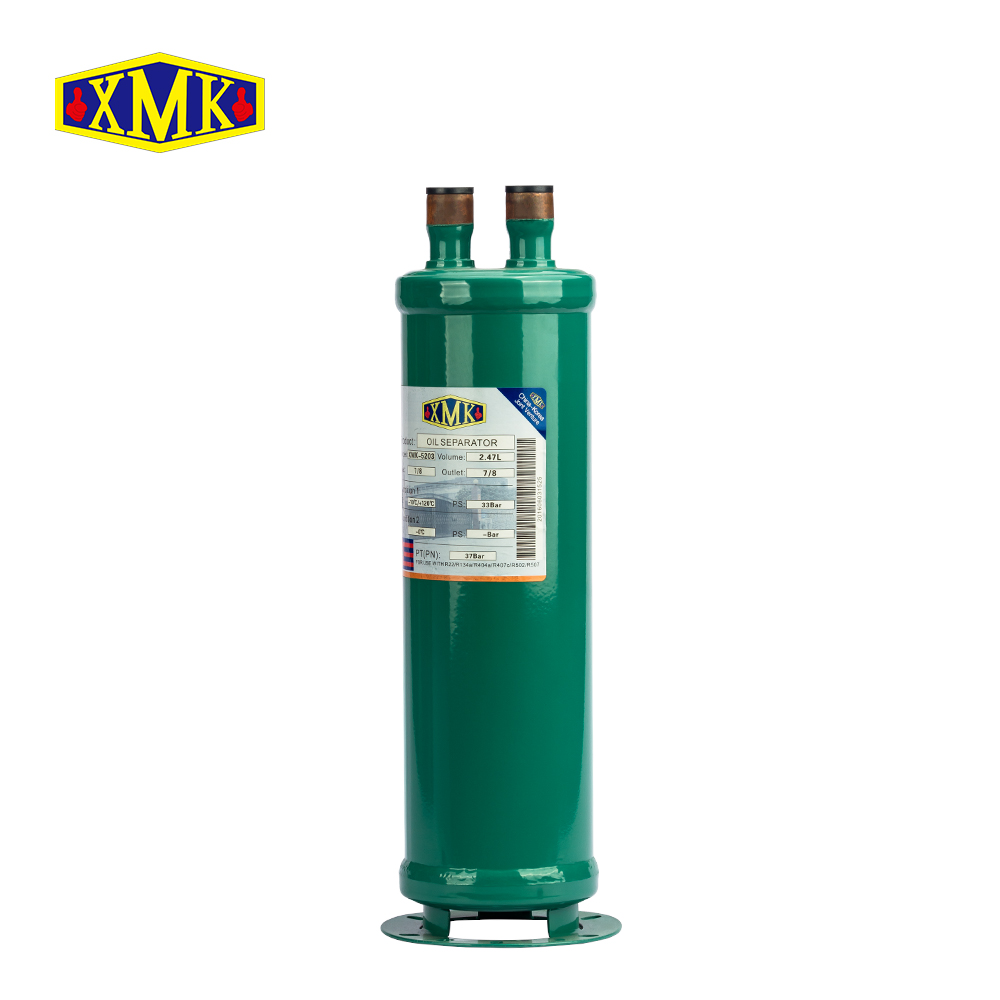

product name:oil separator

1. specification

*Separator’s function is to help refrigeration and air conditioning system operate more efficiently and save energy.

*In any refrigeration system, refrigeration system, refrigerant and oil are always available. Certain amounts of oil will always leave the compressor crankcase with refrigerant gas.

*The oil separator separates the oil from the refrigerant and returns it to the compressor crankcase before it can enter other components of the system.

*The less oil in circulation in refrigeration system, the more refrigerant available for cooling. This increases the efficiency of a system by reducing running time and lowering operation cost.

2.Features

Hermetic welded construction with steel oil return system (1/4” or 3/8” SAE connectors)

*Trusty shut-off of needle valve.

*Detachable installation design is convenient for maintenance.

*The interaction of low flow speed and the changing of flow direction causing the oil gathering, which separates the lubricants from the gathering, and *automaticlly returning it to the compressor crankcase.

*Surface corrosion resistant static electrical painting procedure protecting the shell from the rust.

*Can reduce the vibration and noise of system high pressure end.

*Maximum working pressure: 3.5MPa.

3.Designing Function

1,ODF connection(TP2Y2)
2,Flange plate(45#)
3,Flange ring(20#)

4,Mesh(0Cr18Ni9Ti)

5,Holding plate set(08F)

6,Oil concentrator(Q235)
7,Steel shell(Q235)

8,Floating ball(ST12)

6,Needle valves(20#)

4.Ava

About Us

ilable Model

Model	Size	Quantity/carton
S-5302/ 4004F	1/2"	6
S-5303/ 4005F	5/8"	6
S-5304/ 4007F	7/8"	6
S-5305/ 4011F	1-1/8"	6
S-5306/ 4013F	1-3/8"	6
S-5307/ 4015F	1-5/8"	6
S-6302/ 6011F	1-1/8"	2
S-6303/ 6013F	1-3/8"	2
S-6304/ 6015F	1-5/8"	2
S-6305/ 6021F	2-1/8"	2
