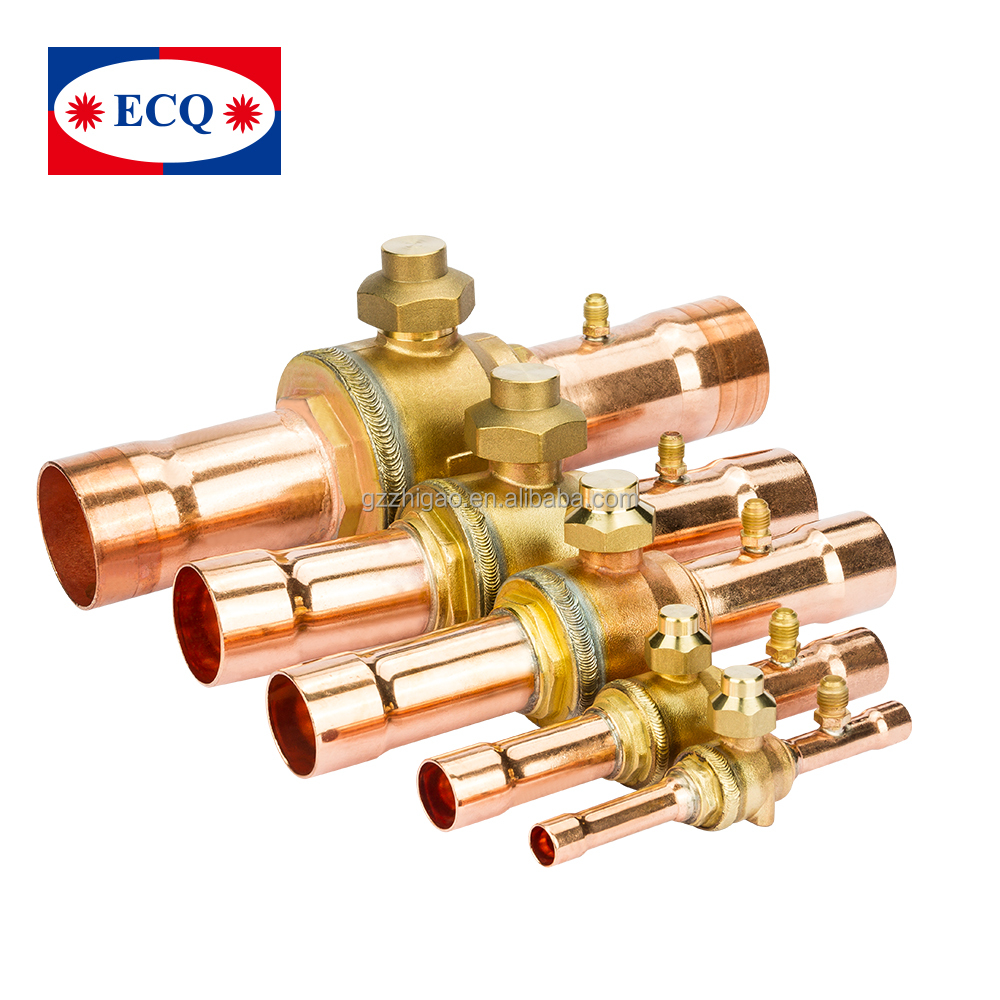

1/2 inches GBC Model Control Valve Brass Refrigeration Tool Ball Valve HCFC HFC
1/2 inches GBC Model Control Valve Brass Refrigeration Tool Ball Valve HCFC HFC
1/2 inches GBC Model Control Valve Brass Refrigeration Tool Ball Valve HCFC HFC
1/2 inches GBC Model Control Valve Brass Refrigeration Tool Ball Valve HCFC HFC
1/2 inches GBC Model Control Valve Brass Refrigeration Tool Ball Valve HCFC HFC
1/2 inches GBC Model Control Valve Brass Refrigeration Tool Ball Valve HCFC HFC
1/2 inches GBC Model Control Valve Brass Refrigeration Tool Ball Valve HCFC HFC

1/2 inches GBC Model Control Valve Brass Refrigeration Tool Ball Valve HCFC HFC

Model NO.:GBS-12
  • Minimum order quantity1 piece
  • Country of OriginGangzhou
  • Categories: ball valve
    • Warranty:others
    • Type:BALL VALVES
    • Customized support:OEM
    • Place of Origin:Guangdong, China
    • Brand Name:ECQ
    • Model Number:GBS-12
    • Application:General
    • Temperature of Media:Normal Temperature
    • Power:Electric
    • Media:Gas
    • Port Size:1/2
    • Structure:BALL

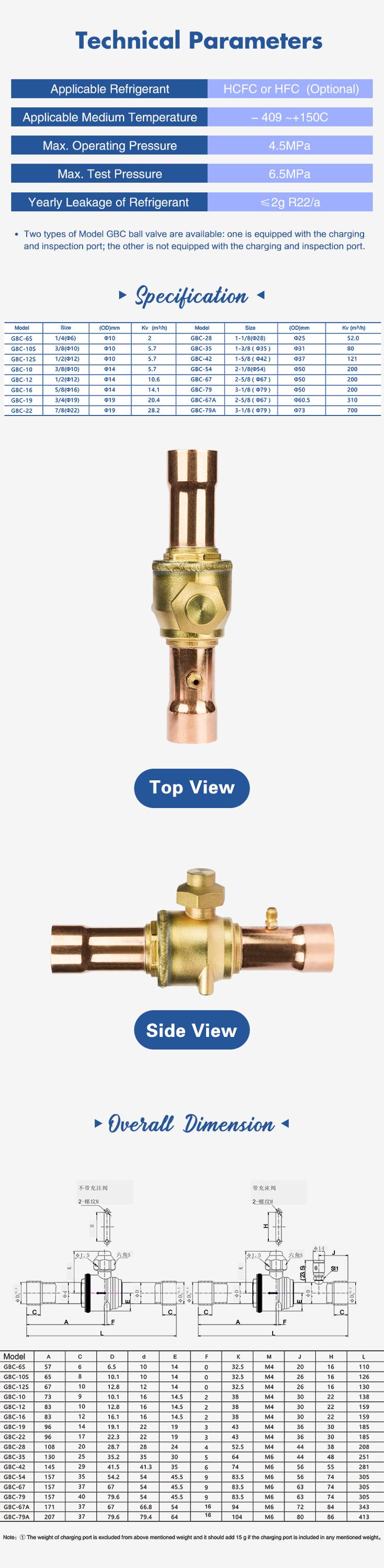

    • Applicable Refrigerant:HCFC and HFC
    • Applicable Medium Temperature:-40°C~+150°C
    • Max. Operating Pressure:4.5MPa
    • Max. Allowable Pressure:6.5MPa
    • Yearly Leakage of Refrigerant:≤5g R22/a
    • Material:Brass
    • Certification:ISO9001, QS

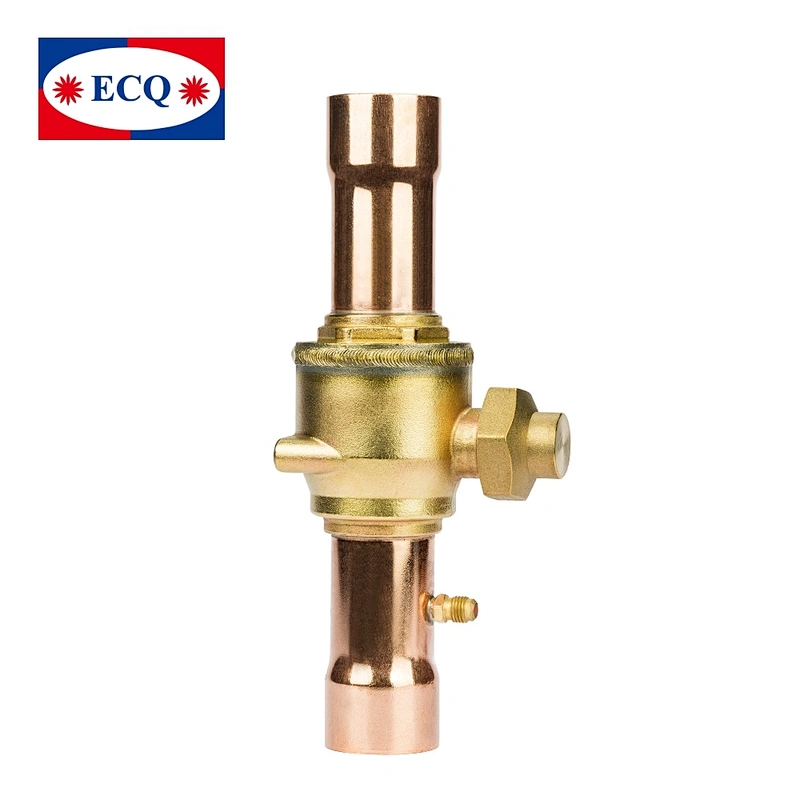

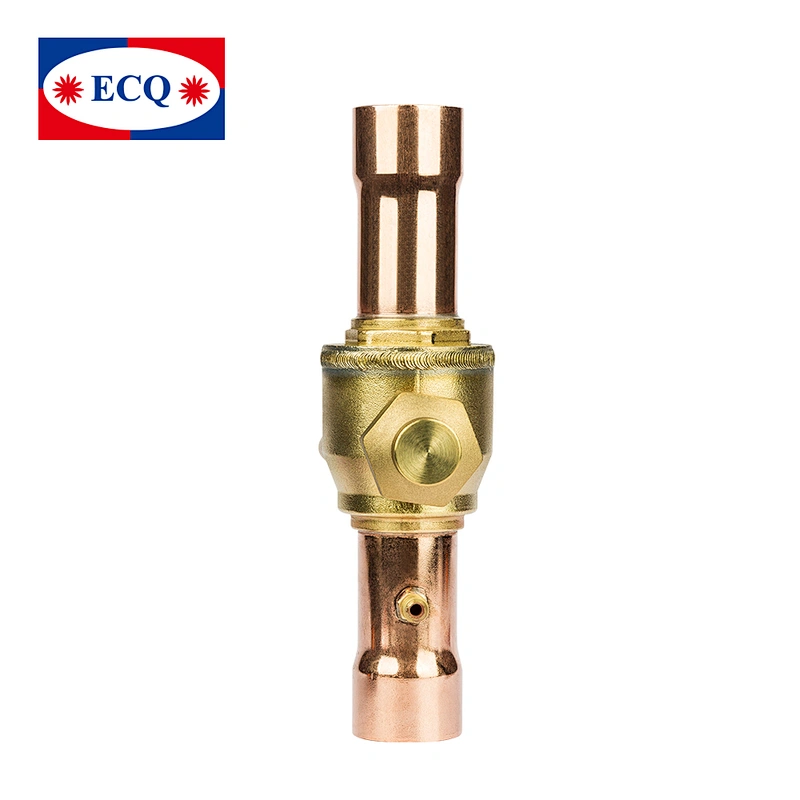

    1/2 inches GBC Model Control Valve Brass Refrigeration Tool Ball Valve HCFC HFC

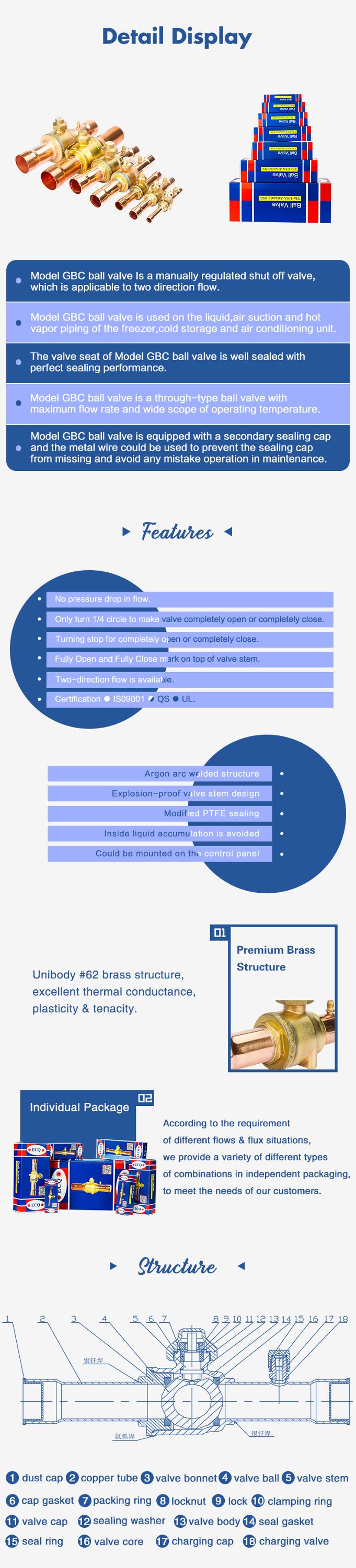

    Product Overview

    Model GBC ball valve
    *GBC ball valve is a manually regulated shut-off valve which is applicable to two-direction flow.*GBC ball valve is used on the liquid , air suction and hot vapor Piping of the freezer , cold storage and air conditioning unit.* The valve seat of model GBC ball valve is well sealed with perfect sealing performance.*The valve is a through-type ball valve with maximum flow rate and wide scope of operating temperature.
    Features
    1.No pressure drop in flow

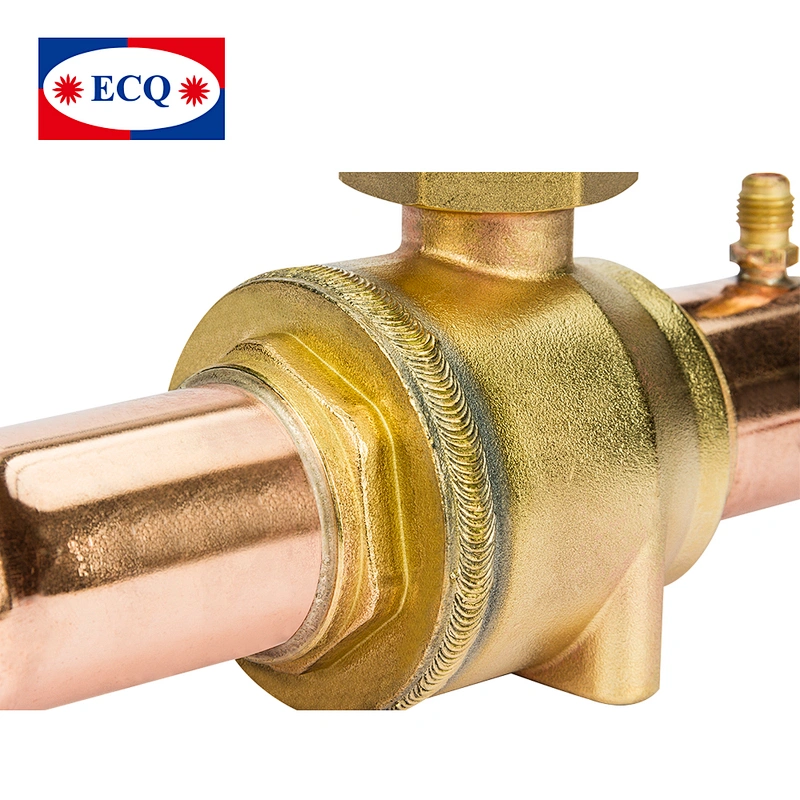

    6. Argon arc welded structure.
    2.Only turn 1/4 circle to make valve full open or full close
    7. Explosion-proof valve stem design.
    3.Full Open and Full Close mark on top of valve stem
    8. Modified PTFE sealing
    4.Two-direction flow is available
    9.Inside liquid accumulation is avoided
    5.Certification . ISO9001 . QS .UL
    10. Could be mounted on the control panel
