Warranty:3 years
Type:Globe Valves, Flare/welding (SAE/ODF)
Customized support:OEM
Place of Origin:Guangdong, China
Brand Name:Hengsen
Model Number:SF-04
Application:refrigerator condensing unit, general
Temperature of Media:Medium Temperature
Power:Manual
Media:Gas
Port Size:1/2"
Structure:Diaphragm
Standard or Nonstandard:Standard
Size:1/4'' 3/8'' 1/2'' 5/8'' 3/4'' 7/8''
nut:have
Color:Red

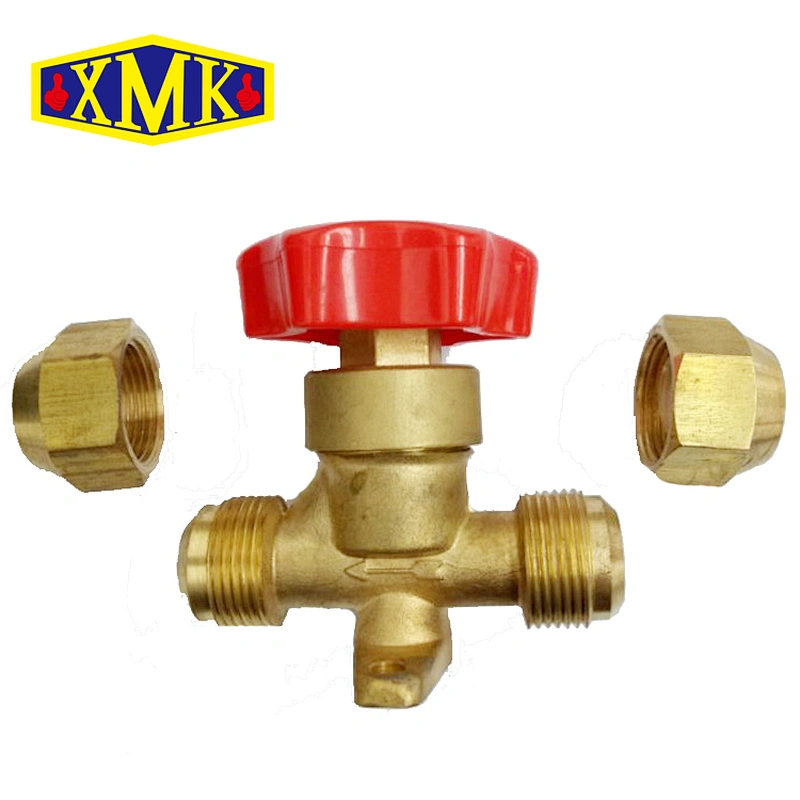

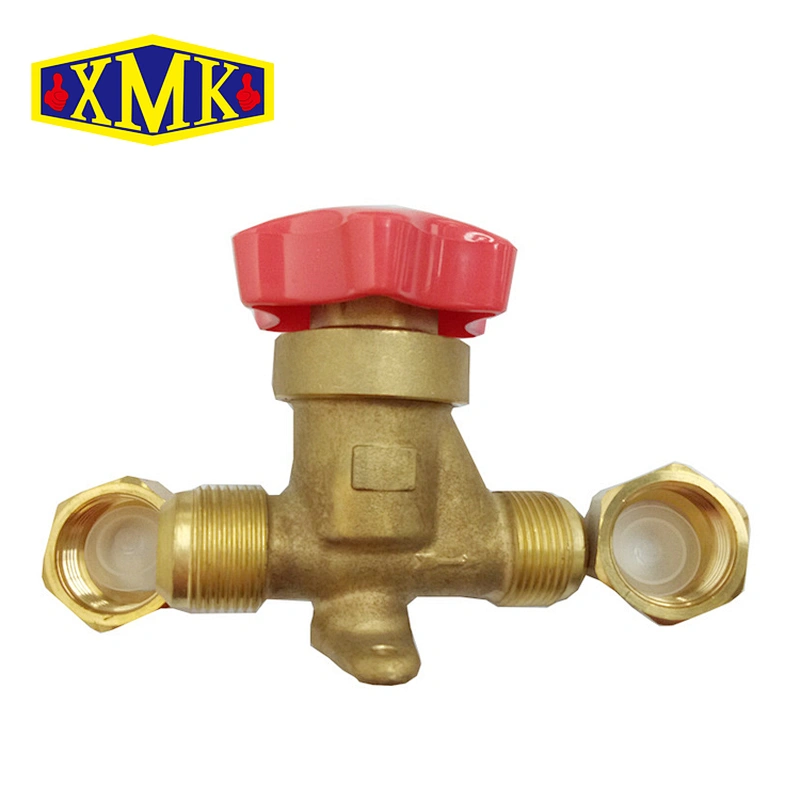

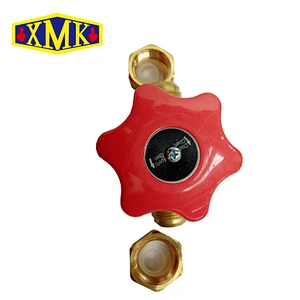

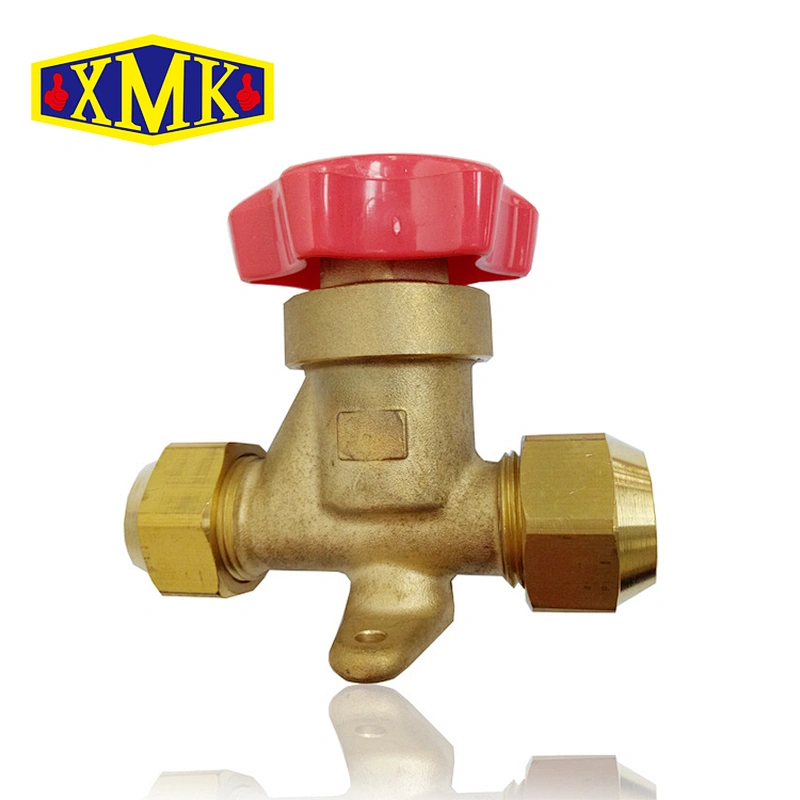

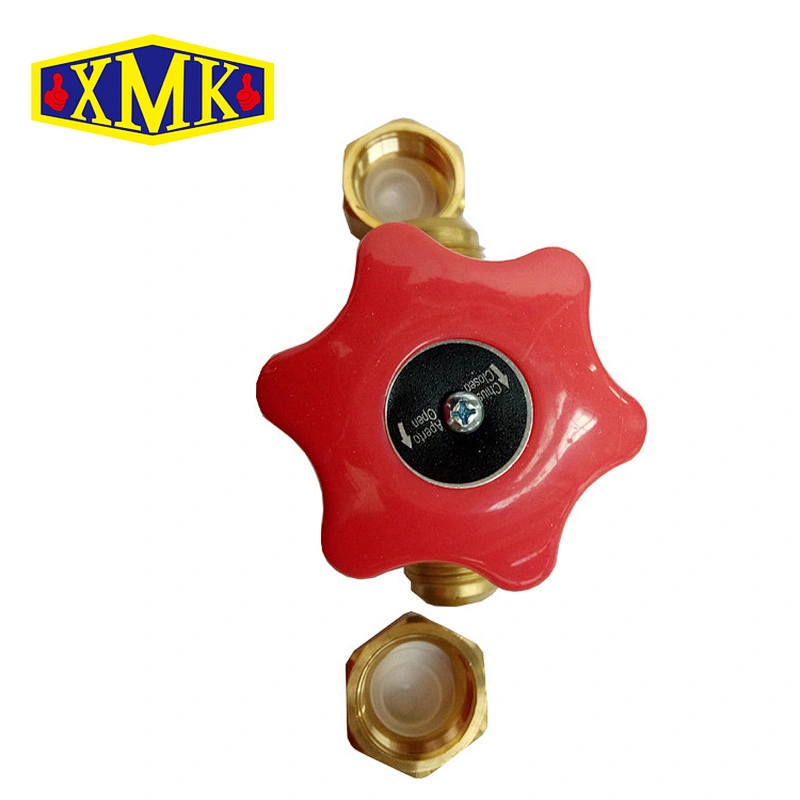

1/2'' Flare type connection control hand valve SF-04

Product Description

This is a manual shut-off valve designed for installation in the liquid, suction and hot gas lines of refrigeration plants. The valve can be delivered with flare, ODF solder or ODF solder with extended ends.

· General diaphragm hand valve is a manuallyoperated shutoff valve, which is applicable to one direction flow.· General diaphragm hand valve is used on the liquid, air suction or hot vapor piping of a freezer, cold store and air conditioning unit.

Specification

Applicable Refrigerant	HCFC and HFC	Scope of Operating Pressure	-0.1MPa~2.1MPa
Applicable Medium Temperature	-25°C~+100°C	Air-tight Test Pressure	3.0MPa
Max. Operating Pressure	2.5MPa	Withstand Test Pressure	4.5MPa

Model	FLARE TUBE	THREAD
SF-02	1/4''	7/16''-20UNF
SF-03	3/8''	5/8''-18UNF
SF-04	1/2''	3/4''-16UNF
SF-05	5/8''	7/8''-14UNF
SF-06	3/4''	1-1/16''-14UNF
SF-07	7/8''	1-3/16''-12UNF
